【特色】
【特色】
| 項目 | 規格 |
|---|---|
| 輸入 | 熱電偶 K、J、T、E、B、R、S、N、C (ITS、90) |
| 熱電阻 PT 100Ω二或三線式 | |
| 電壓±60mVDC or ±10VDC | |
| 電流0 to 24mADC | |
| 精 度 | 參數表 |
| A/D 解析度 | 16 Bits |
| 取樣時間 | <200ms |
| 電 源 | DC 10~36V |
| 最大值載 | MAX LOOD、 (V-10) 10.02(Ω) |
| 輸出解析度 | 0.6uA(15Bits) |
| 輸出反應時間 | <200ms/td> |
| 共模拒斥比(CMRR) | >80dB |
| 電池相容性 | En50081-2 . En50082-2 |
| 隔 離 | 4KV between input and output |
| 操作溫度 | -40 to 85℃ |
| 濕 度 | 0 to 90%RH |

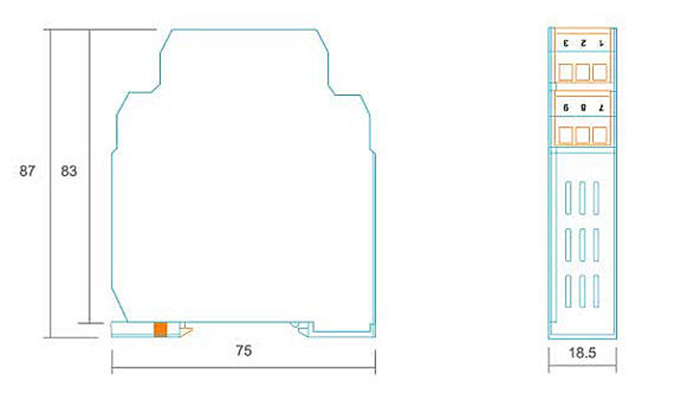

| 尺 寸 | 75mm(w) X 87mm(H) X 18.5mm(D) |
| 輸入類型 | 最大範圍 | 精度 |
|---|---|---|
| Thermocouple J | -50 to 1000 ℃ (-58 to 1832)°F | ±1℃ |
| Thermocouple K | -50 to 1370℃ (-58 to 2498)°F | ±1℃ |
| Thermocouple T | -270 to 400 ℃ (-454 to 752)°F | ±1℃ |
| Thermocouple E | -50 to 960 ℃ (-58 to 1780)°F | ±1℃ |
| Thermocouple B | 0 to 1750 ℃ (32 to 3182)°F | ±2℃ (註1) |
| Thermocouple R | -50 to 1750 ℃ (-58 to 3182)°F | ±2℃ |
| Thermocouple S | -50 to 1750 ℃ (-58 to 3182)°F | ±2℃ |
| Thermocouple N | -50 to 1300 ℃ (-58 to 2372)°F | ±2℃ |
| Thermocouple C | -50 to 1800 ℃ (-58 to 3272)°F | ±2℃ |
| Pt100 | -200 to 600 ℃ (-328 to 1112)°F | ±0.2℃ |
| mV | -60mV to 60mV | ±0.01mV |
| Voltage (註1) | -10 to 10Vdc | ±1mV |
| Current (註1) | 0 to 24mAdc | ±10 u A |
