M2 Flexible Surface Temperature Sensor

M2 Flexible Surface Temperature Sensor

【Features】

  • The Best Solution of Surface Temperature Measurement
  • Detect it ahead of time before the problem happen
  • Applicable temperature range:-30°C~150°C.
  • Accucay: DIN IEC751 Class A or B, T/C Class 0.5.
  • The material has been cerified by UL and complies with UL-510 fire-resistance rating.
  • Mini size 12x12(mm), suitable to detect the temperature of CPU.
  • Fast and accurate temperature sensing; 100% IP68 water proof.
  • It can be attached on the surface of the object to be sensed with the advantages of simle installation, resistance against severe environment and chemicals.

Refrigerator (Freezer) for Medical Products、 Communication Machine Room、 Central Control Room、 Communication Environment Control Room、 Indoor Temperature Sensing for Fire Alarm

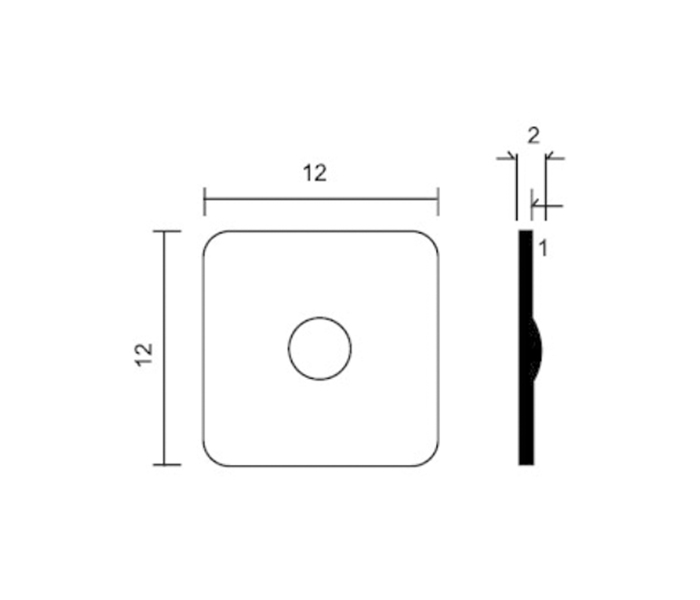

► Dimensions(mm)

► Specifications

Type M2 Note
Size 12x12x2(mm) Can be customized for special requirements
Temperature Sensing Body PT100 ΩAOBclass K.J.T Can be customized for special requirements
Response Speed 200℃/5s
Thermal Conductivity 1.5W/mK ASTM D547D
Temperature Sensing Range -30~250℃
Rupture Strength 10kg/in2 DIN IEC751
Safety Cerification (PAD) UL E117836
Adhesion of Backside Sticker in2 800g(100℃) / in2 400g(200℃)
Comosion Resistance Gasoline, Acetone, Cleanser, acid/base, etc.
Water Proof Rating IP68 CNS14165
Insulation Voltage Resistance 5KV ASTM D-149-91


► Order specifications


FSTS － TYPE
M2		 －
INPUT TYPE
1 K
2 J
3 T
4 PT100Ω
5 OTHER
－
℃ S ELECT
1 100℃以內
2 101~200℃
3 OTHER
－
LEAD WIRE
1 K.1.2 TEFLON 2M
2 J.1.2 TEFLON 2M
3 T.1.2 TEFLON 2M
4 PT PVC
5 PT TEFLON 2M
6 OTHER
