PC-1000 Rail-mounted display, alarm, transmission, controller

PC-1000 Rail-mounted display, alarm, transmission, controller

【Features】

  • Rail-mounted, precise, compact
  • Has display, control, alarm and transmission functions
  • RS485 (MODBUS) communication function, expandable to 256 points
  • Multiple input/output options
  • With FUZZY+PID control functions
  • With heater breakage alarm

► Dimensions

► Specifications

Dimensions 22.6x75x100 (mm)
Input Method PT100Ω(DIN)、T/C、4-20mA、0-10V
Output Method Relay、SSR、4-20mA or DCV0-10V
Control Method PID.ON-OFF、selectable
Alarm Output 1組1a(5A/250VAC SPDT)
Display Range -999～9999
Precision ±<0.2% OFF.S+1Digit
Working Voltage 90～265VAC 50/60 Hz or 24VDC/AC (op)
Ampere Consumption 5VA max. or 100mA max (24VDC)
Memory Type EEPROM
Insulation Strength OVER50mΩ/500VDC
Voltage Endurance OVER2.5KV/1MINUTE℃
Operating Environment -20℃～75℃ RH:85%H
E MC Standard ESD:8KV Air Discharge(L-13)/EN-6100-4-2 RFInterference: 10V/M/ENV-50140 Burst test:2KV/EN61000-4-4


► Order



► Wiring diagram

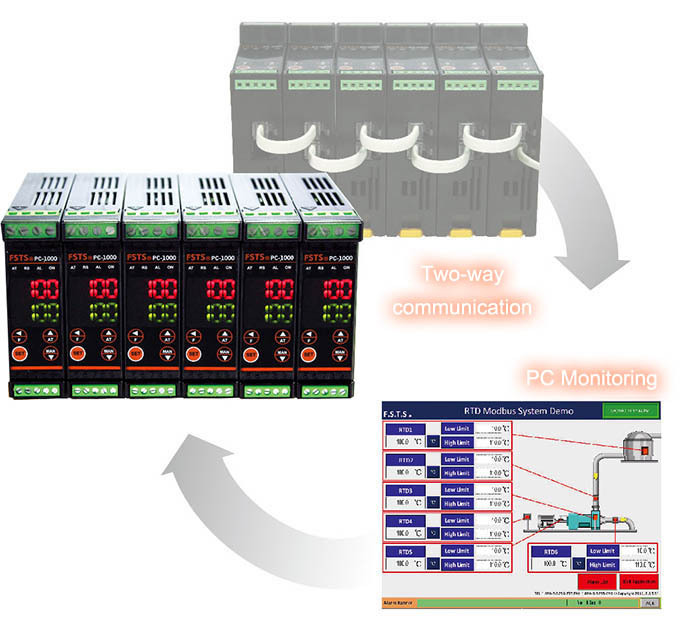

► Linking illustrations


  • The system can be linked with up to 255 monitors.
  • Equipped with phone connectors, easy to install.
  • We provide design and testing services for monitoring sofware (charged separately).
