CH Serial Monitoring Alarm Transmitter

CH Serial Monitoring Alarm Transmitter

【Features】

  • CH1 or CH5 Inputs (K, J, T, DINPT100Ω4-20mA0
  • 2 alarms, multi-mode time-delayed alarms
  • After being converted into 4-20mA, it can be operated with recorder for centralized monitoring.
  • RS485 communication capability (MOBUS RTU format)
  • 90-264VAC or DC24V (Power)
  • IP 65

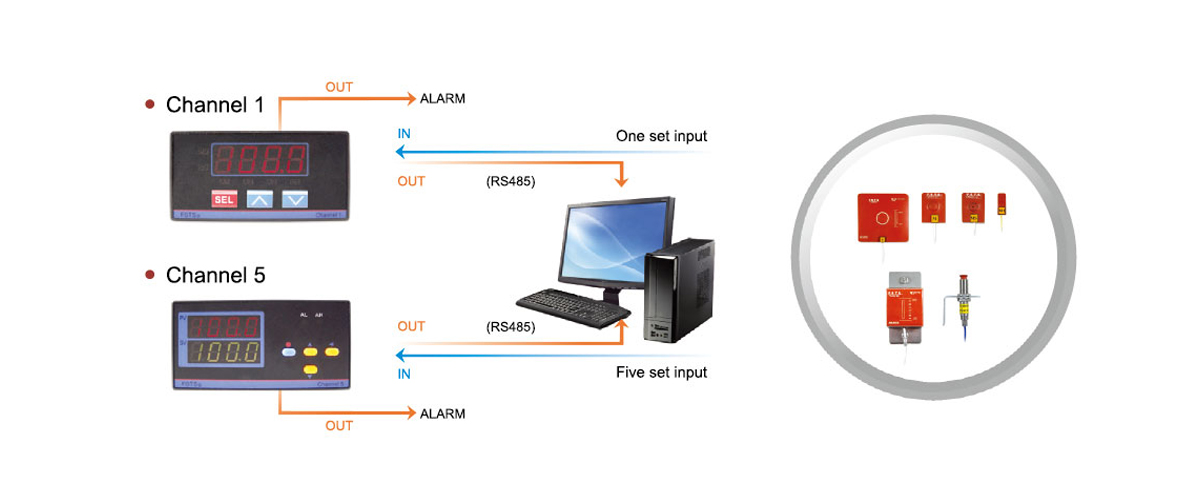

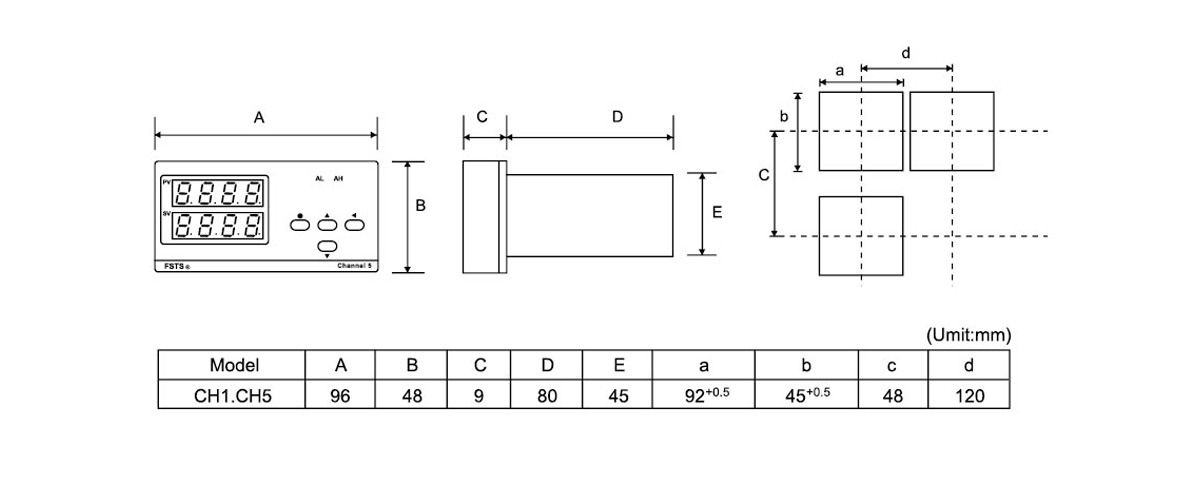

► Dimensions

► Specifications

Model Channel1 Channel5
Input T/C:K、T、B、S、C、J、E、R、N T/C:K、J、T
PT DINPT100ΩJIS100ΩLinnear 4-20mA 1-5V 0-10V DINPT100ΩLinear4-20mA 1-5V
Accuray T/C±1℃ RTD±0.2℃ Linear ±3uv
Sampling Time 0.25sec
Control Mode P:PB 0.0~300%FS ON/OFF Hysteresis 0~2000 ON/OFF HI. LO. Hysteresis 0~2000
Cycle time(0~100s) Relay 0~15 sec . puls 1 sec . current(voltage) 0sec
Output Relay 10A/240VAC Puls:DC0/24V(250Ωmin) 4~20mA(600Ωmax) 0~10V(600Ωmax) Relay 2a 10A/240NAC(Resistant Load)
Ratevoltage AC90~264V 50/60HZ DC24V
Ambient Temperature 0~50℃
Ambient Humidity 0~90%
Consumption 3W以下
Alarm mode PV HI LO AL . Deviation Hi Lo AL . Band Hi Lo AL . PV Hi Lo AL with Delay time.

► wiring diagram
